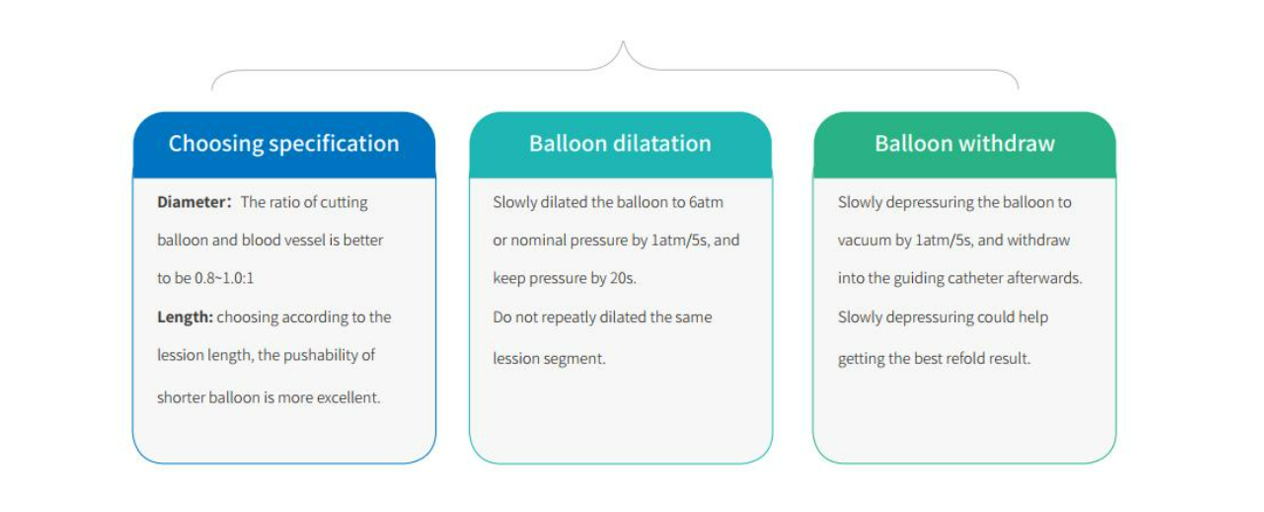

Can be Expanded Repeatedly, Do not Reverse the Catheter Between Two Expansions
-

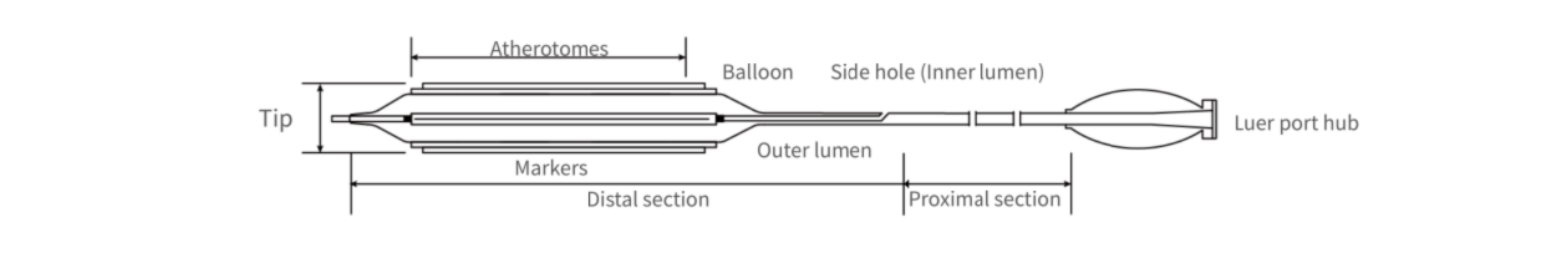

Structure Indication and Technical Parameters
1. Adapted guiding catheter: Minimum guiding catheter 1.8mm/6F2. Adapted guiding wire:0.36mm/0.014inch3. Effective length of the catheter:1350mm4. Marker location:Both ends of the balloon

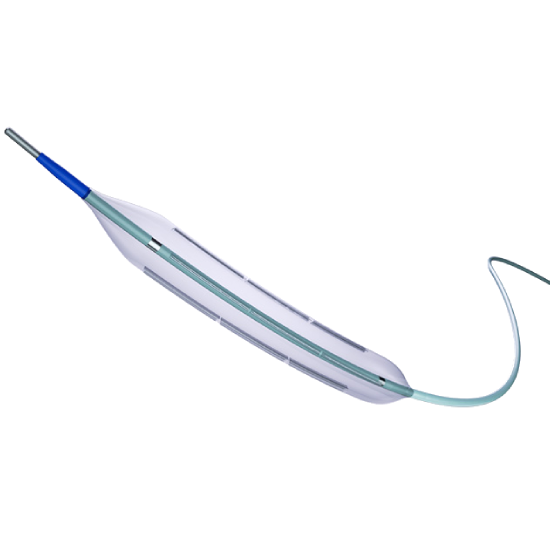

The Vesscide Cutting Balloon Dilatation Catheter is intended for use in the treatment of coronary artery stenosis. The target lesion should possess the following characteristics:
(1) Localized lesions with lesion length ≤ 20mm.
(2) Reference vessel diameter (RVD) of 2.00 mm to 4.00 mm
(3) Readily accessible to the device
(4) Light to moderate tortuosity of proximal vessel segment
(5) Non-angulated lesion segment (< 45° )
(6) Smooth angiographic contour
(7) Absence of angiographically visible thrombus.

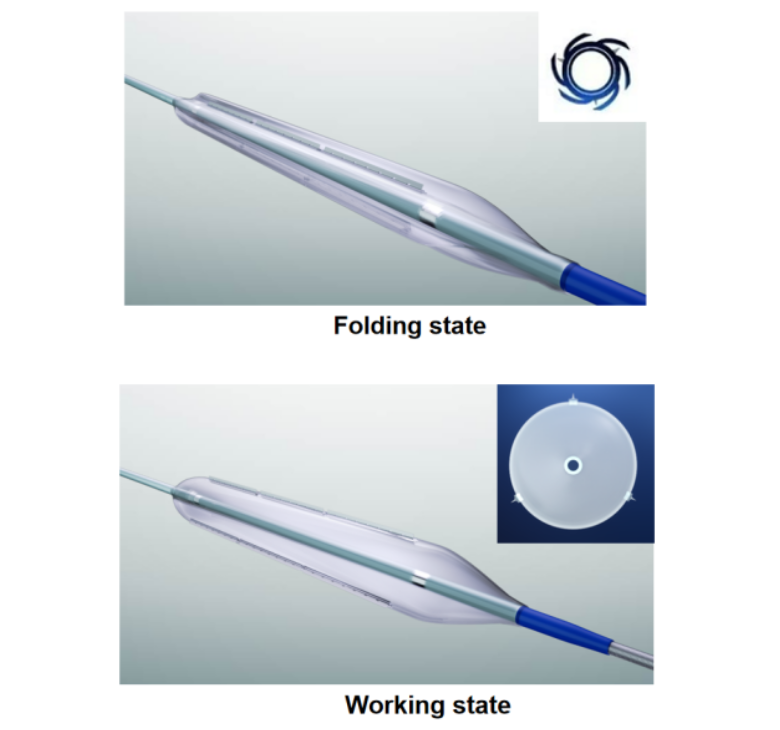

- Sharp and anti-friction blades, balance cuttingforce and flexibility
- Blades Working height is only 0.13mm, which could avoid blood vessel perforation
- Pre-made longitudinal neat blades, which could reduce the risk of intimal disordered tearing
- Sharp and anti-friction blades, balance cuttingforce and flexibility
- lmprove crossability
- Optimize retraction
- lmprove crossability
- Optimize retraction
- Sharp and anti-friction blades, balance cuttingforce and flexibility
- Blades Working height is only 0.13mm, which could avoid blood vessel perforation
- Pre-made longitudinal neat blades, which could reduce the risk of intimal disordered tearing
- Sharp and anti-friction blades, balance cuttingforce and flexibility
- lmprove crossability
- Optimize retraction
- lmprove crossability
- Optimize retraction
This product is presented for academic exchange purpose only and is not intended for sale within European Union.
