RattleSight Coronary Intravascular Ultrasound Diagnostic Catheter
RattleSight Coronary Intravascular Ultrasound Diagnostic Catheter

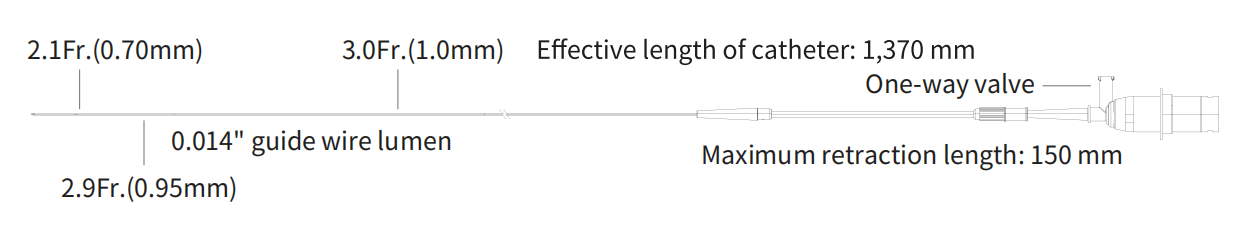

Structure Diagram and Technical Parameters
- Catheter tip to marker ring distance: 4 mm
- Catheter tip to side hole distance: 15 mm
- Catheter tip to transducer distance: 20 mm
- Included accessories: 3 mL and 10 mL syringes, pressure extension tube (length: 19 cm)
Features

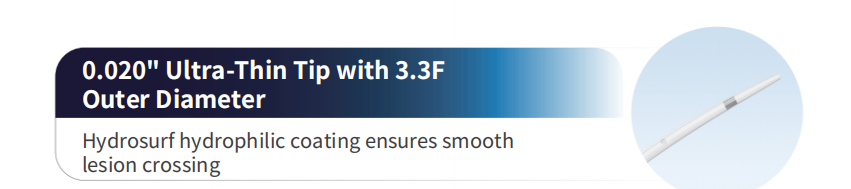

- • 0.020" Ultra-Thin Tip with 3.3F Outer Diameter
- • 50 & 60 MHz Dual-Frequency Platform

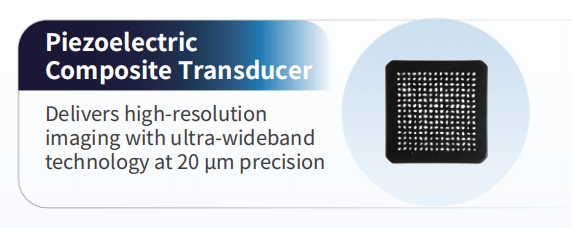

- • Piezoelectric Composite Transducer

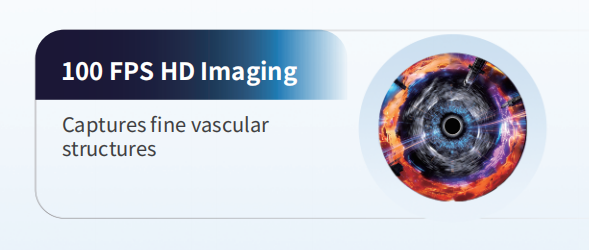

- • 100 FPS HD Imaging
- • Six-Stage Retraction, Up to 10 mm/s

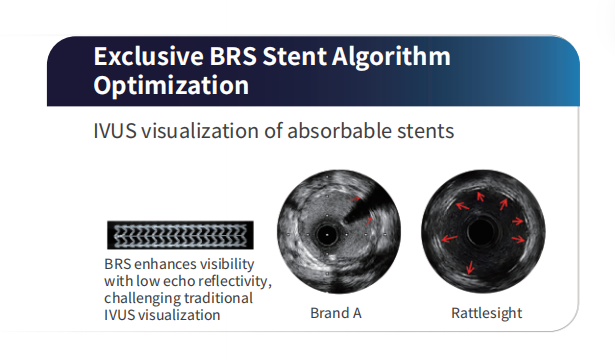

- • Exclusive BRS Stent Algorithm Optimization
- • 2K Touchscreen

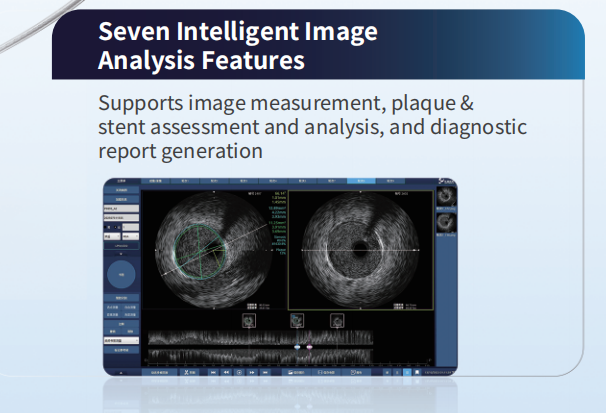

- • Seven Intelligent Image Analysis Features

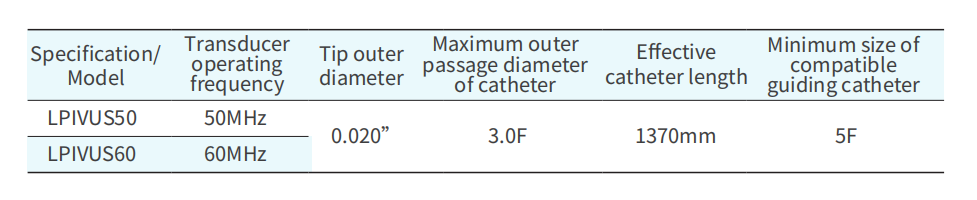

Specification/Model
