Eliable liquid- and plate handling technology
Convincing performance
Compact benchtop design
Intuitive and flexible software
Standard Configurations

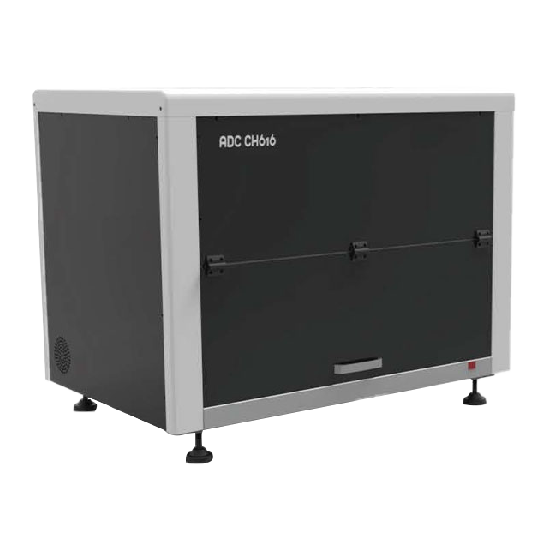

| Model | ADC CH616 |
| Design | Benchtop design |
| Capacity | 1-48 samples (tube ø 12 - 13mm, standard configuration) |
| Working platform | Flexible setup. Loading posistions can be assigned to samples or reagents |
| Liquid handling system | Common X - movement. Channel spacing between adjacent channels: 9 to 22mm for 4 channels. Equidistant channel spacing. Independent, simultaneous vertical tip movement. Position increment: ∆X, ∆Y and ∆Z = 0.01mm |
| Piercing | Sealed plates can be pierced using the pipetting system and standard pipetting tips |
| Tip rack | 4 x 96 tips |
| Samples Volume | 500ul |
| Elution volume | 80ul |
| Cooling block | 3 - For PCR reagents, Eluted DNA/RNA and PCR plate |
| Heating shaker | 3 - Controlled between ambient temperature and 105 °C, adjustable at an increment of 0.1°C |
| Accuracy | ±0.5°C @ 37°C |
| Plate transfer system | Transfers plates between incubators and magnetic particle separator and places and removes plate covers. |
| Barcode reader | 2 - For samples and reagents |
| UV Lamp | 3 - For maximum efficiency over the whole worktable |
*Product registration and availability vary by country. For more information on product availability, please contact us here.
