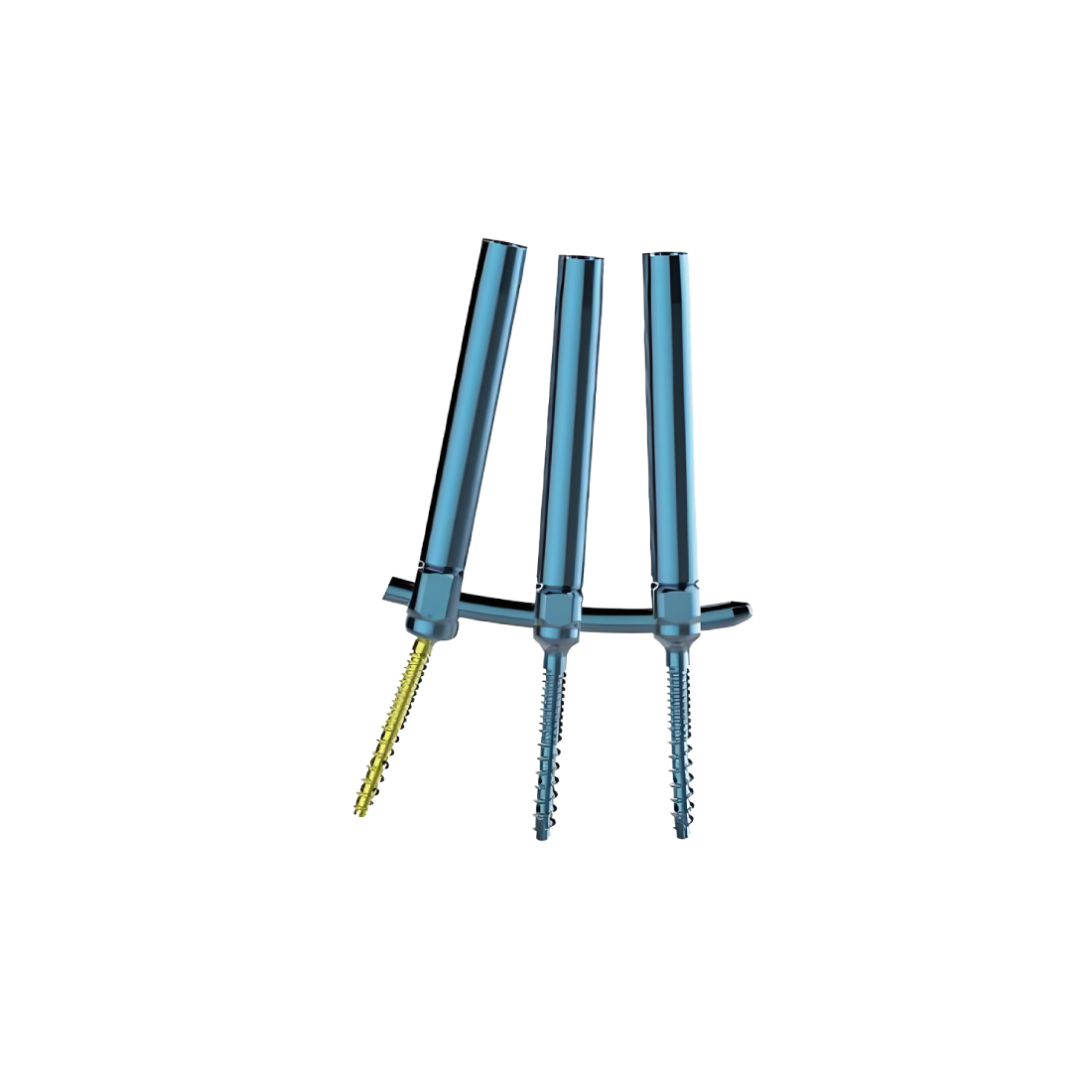

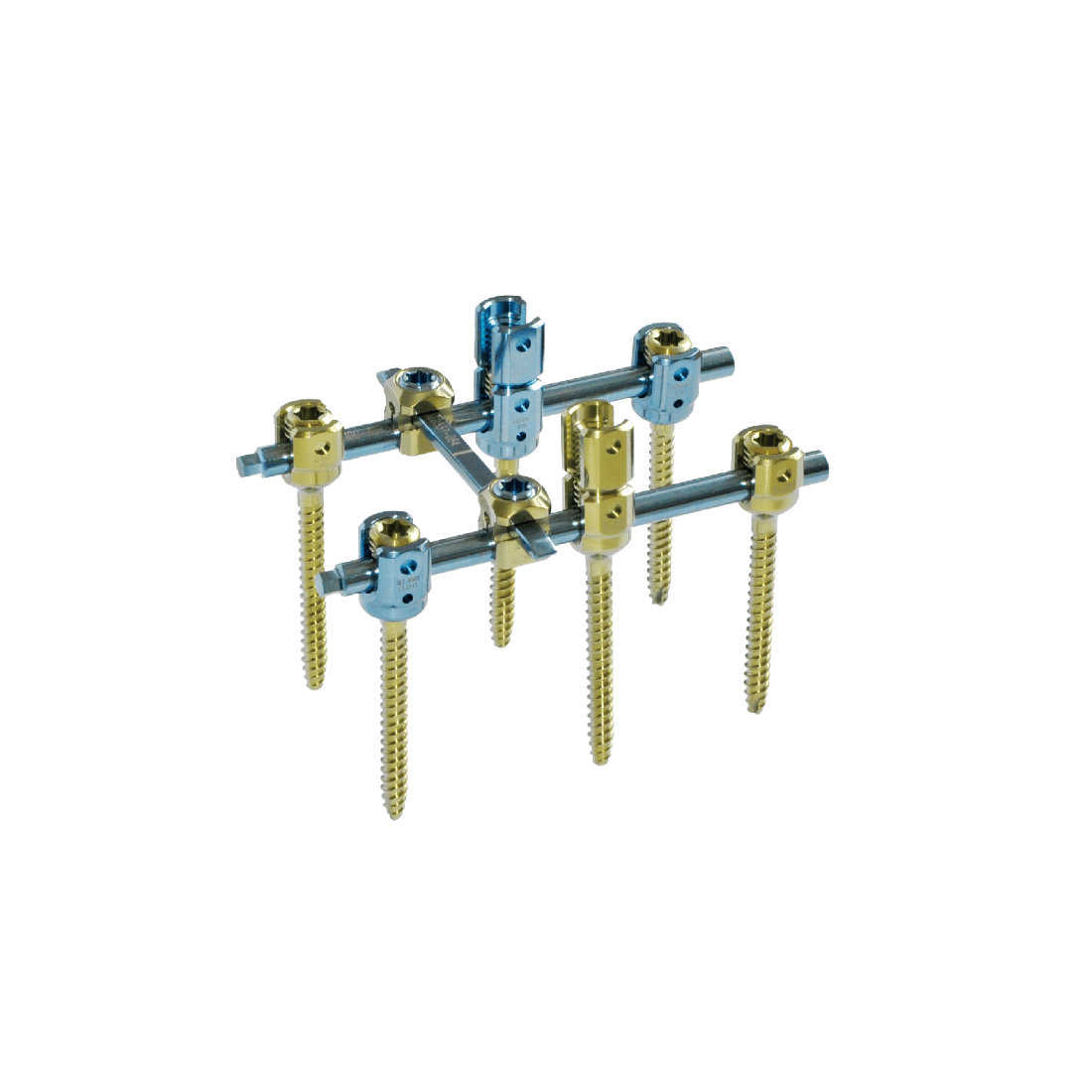

Internal Spinal Fixation System

Internal Spinal Fixation System (VI)

Application: For posterior thoracolumbar internal fixationcervical

Internal Spinal Fixation System (Ⅶ)

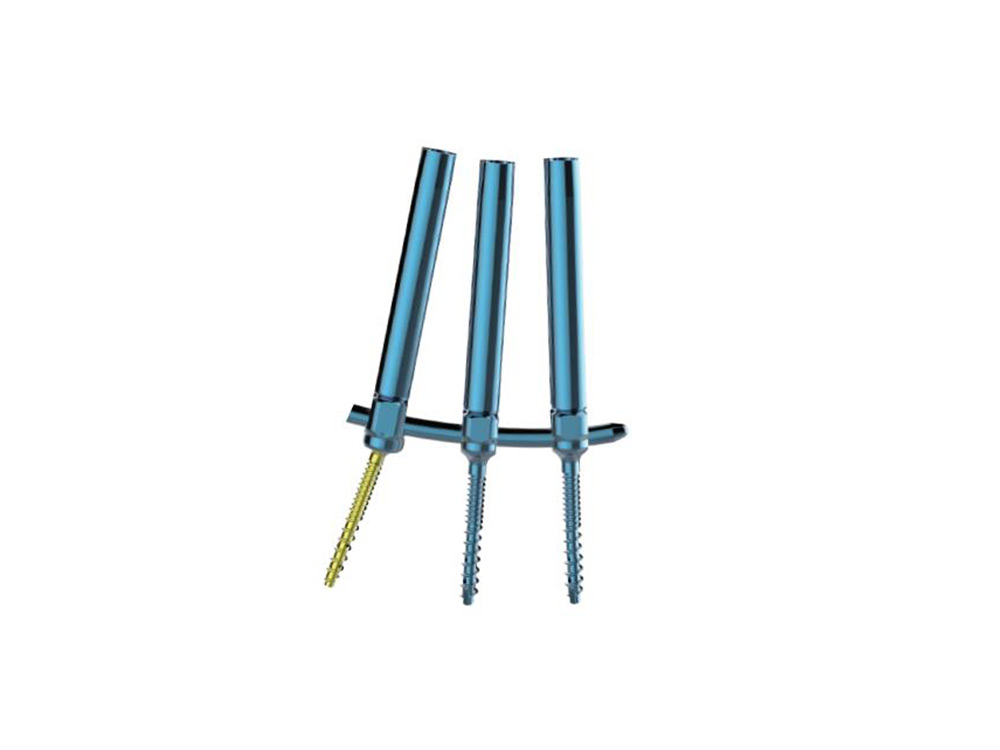

Posterior Spinal Internal Fixation (IX)

Diameter: Ф5.5

Length: 40mm-90mm, 5mm/increment

90mm-130mm, 10mm/increment

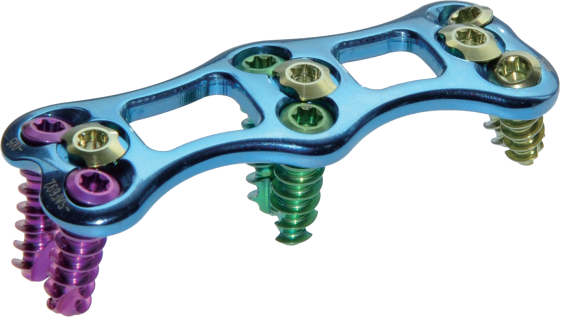

Anterior Cervical Fixation System (VI)

Application: For anterior cervical internal fixation

Feature：

• Large graft window, which provide a clear view during the surgery.

• Optimized screw fixation mechanism, avoid the screw move, reduce the risk.

• Reduction of the plate thickness.

• Physiological curve, fit the cervical anatomy.

• Easy to implant, decrease the surgery duration

Spec.: Holes*Length

4*21mm-25mm, 2mm each interval in length

4*27.5mm-37.5mm, 2.5mm each interval in length

6*40mm-55mm, 2.5mm each interval in length

8*57.5mm-80mm, 2.5mm each interval in length

Fixed Screw/Variable Locking Screw：Φ4.0* 12mm-18mm;2mm each interval in length；

Revision Fixed Screw/ Revision Variable Locking Screw：Φ4.5* 13mm-19mm;2mm each interval in length

Anterior Cervical Locking Fixation System

Feature：

• Large graft window, which provide a clear view during the surgery.

• Optimized screw fixation mechanism, avoid the screw move, reduce the risk.

• Physiological curve, fit the cervical anatomy.

• Various specification, fit different patients.

• Easy to implant, decrease the surgery duration.

Spec: 4*21mm-25mm, 2mm each interval in length

4*27.5mm-37.5mm, 2.5mm each interval in length

6*40mm-55mm, 2.5mm each interval in length

8*57.5mm-80mm, 2.5mm each interval in length

Fixed Screw: Φ4.0* 12mm-18mm;2mm each interval in length；

Revision Fixed Screw: Φ4.5* 12mm-18mm;2mm each interval in length

Mesh

Application: For anterior lumbar inter-body fusion

Spec.: Φ10*40-Φ25*120

Material: Titanium Alloy

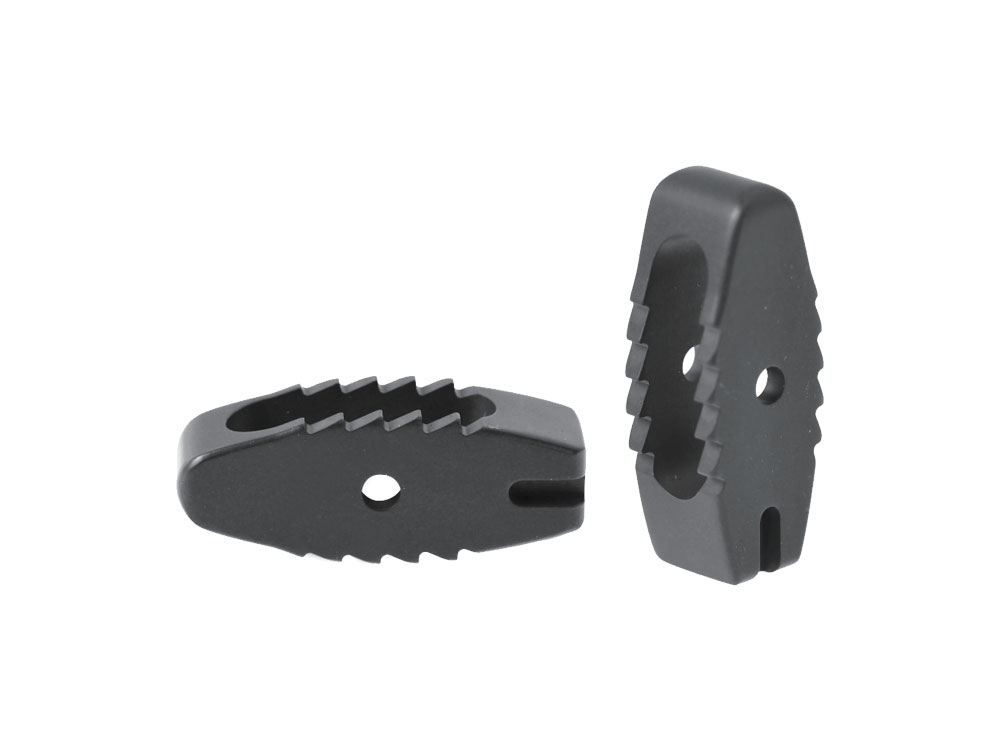

Posterior Lumbar Fusion Cage (Bullet Shape)

Application: For posterior lumbar inter-body fusion

Spec.: Height: 8/10/12/14mm

Width: 10mm

Length: 22/26/32mm

Material: Titanium Alloy

Angle: 0°

Interbody Cages for Spine Fusion PEEK CAGE

Application: Anterior cervical interbody fusion

Spec.: 13*15*6；13*15*7；13*15*8.

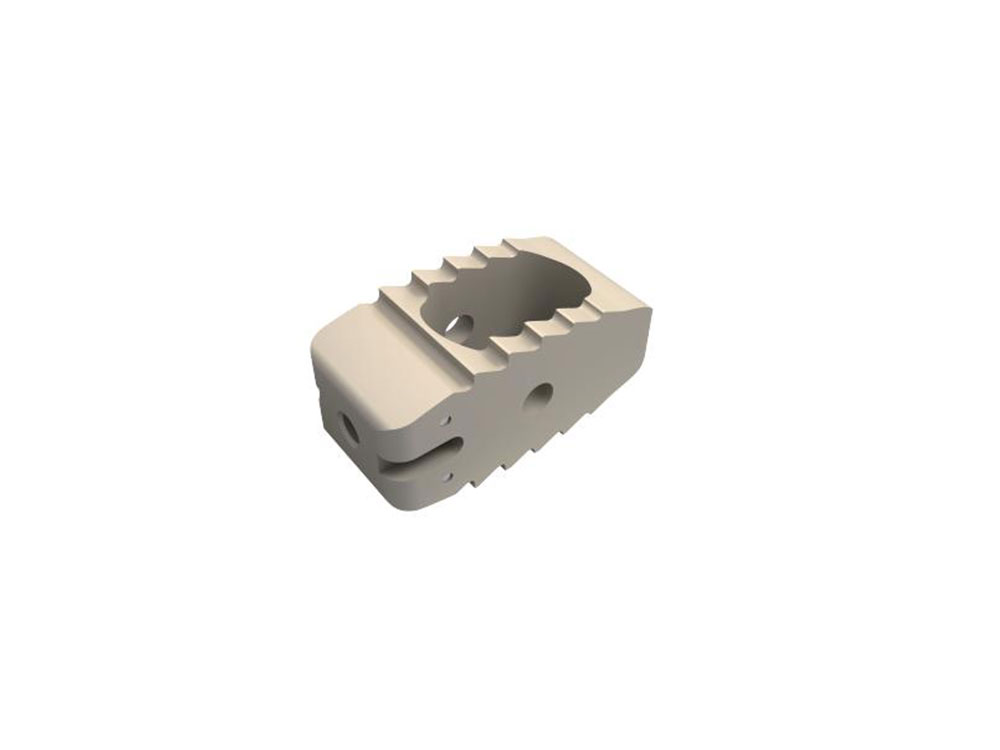

Thoracolumbar Fusion Cage I

Application: Posterior spinal interbody fusion

Spec.: 22*10*8/10/12/14；

26*10*8/10/12/14；

32*10*8/10/12/14；

36*10*8/10/12/14；

Application: Posterior spinal interbody fusion

Spec.: 28*10*(8-16) 5°

32*12*7 0°

32*12*(8-16) 5°

Thoracolumbar Fusion Cage II

Spec.: 22*10*8/10/12/14;

26*10*8/10/12/14;

32*10*8/10/12/14;

36*10*8/10/12/14;

Material: Peek
