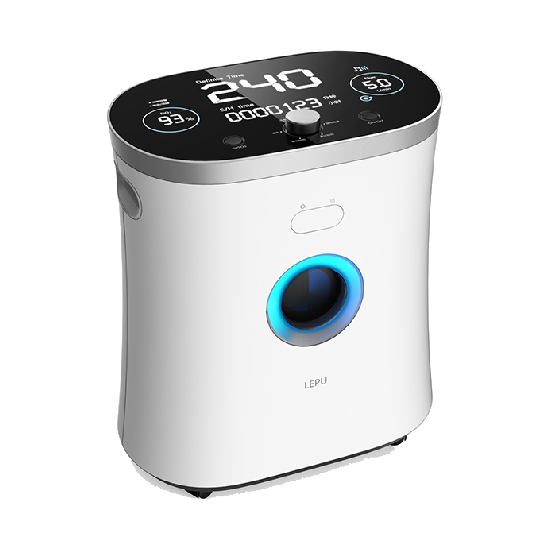

LF05A Oxygen Generator

Oxygen Concentrator Generator Structural Composition

• Guangshun high-quality high-power oil-free air compressor

• French CECA imported molecular sieve for more lasting and stable oxygen generation

Unique Patent of Medical Oxygen Concentrator Generator

• Condensate drainage design (patent)

The air compressor is designed with an inside condenser tube, in which the water condensed out of hot vapor from the air compressor is stored. Each time it is turned on, the high-speed airflow of the air compressor is controlled by a solenoid valve to spray the condensed water in the condenser tube through the atomizing port. After each shutdown, the high-speed airflow of the air compressor will also be controlled by the solenoid valve to blow out the moisture in the standpipe, which reduces the amount of moisture entering the molecular sieve tower and improves the oxygen production efficiency and life of the molecular sieve.

• Porous muffler hose (patent)

The porous hose of the oxygen generator (such as made of silica gel) is designed in the inlet muffler box and the denitrogenation muffler box. When the airflow with louder noise passes through the small holes on the hoses, the acoustic energy will be largely converted into mechanical energy, thus reducing the noise emitted by the air compressor and the noise during denitrogenation.

Ordering Informations

Technical Parameters
