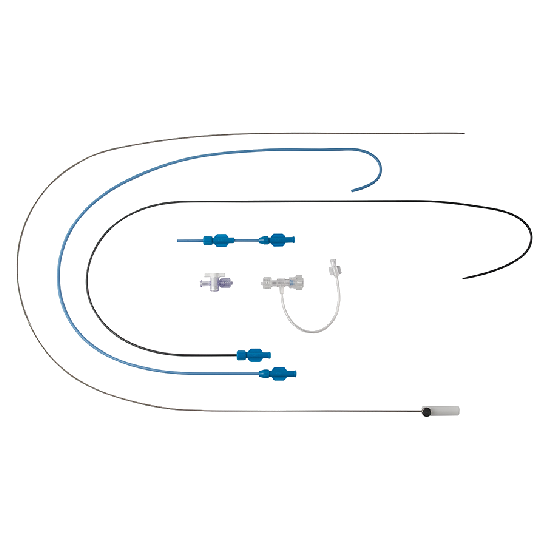

MemoPart™ Occluder Delivery System Detail
Product Description
The MemoPart™ Occluder Delivery System is designed to deliver MemoPartTM Occluder. The device and delivery system are shipped separately. The body of the sheath is radiopaque for visibility under fluoroscopy.
Product Structure
The Occluder Delivery System includes:
Loader (1)
Long Sheath (1)
Dilator (1)
Cable (1)
Y-connector with tubing (1)
Product Features
Two different lengths of the sheath for adults and children.
Anti-kink delivery system is also available for VSD occluders.
Indications for Use
MemoPart™ Occluder Delivery System is intended to provide a pathway through which devices are introduced within the chambers and coronary vasculature of the heart or in the peripheral vasculature.
Specifications
MemoPart™ Occluder Delivery System Delivery System has been designed with six types including ODS-A-I, ODS-P/V-II, ODS-A-III, ODS-P/V-IV.
MemoPart™ Occluder Delivery System has variant specifications according to outer diameter of long sheath, including 5F, 6F, 7F, 8F, 9F, 10F, 12F, 14F.
Ordering Information
The Occluder Delivery System for Adult ASD and PFO Occluders
| Catalogue No | Loader | Long sheath | Dilator | Cable | ||||
| I.D. (mm) | Effective Length (mm) | I.D. (mm) | Effective Length (mm) | Angle | Effective Length (mm) | Effective Length (mm) | Diameter (mm) | |
| ODS-A-I-5F | 5F/1.85 | 130 | 5F/1.85 | 800 | 45° | 920 | 1200 | 1.4 |
| ODS-A-I-6F | 6F/2.0 | 130 | 6F/2.0 | 800 | 45° | 920 | 1200 | 1.6 |
| ODS-A-I-7F | 7F/2.33 | 130 | 7F/2.33 | 800 | 45° | 920 | 1200 | 1.8 |
| ODS-A-I-8F | 8F/2.67 | 130 | 8F/2.67 | 800 | 45° | 920 | 1200 | 1.8 |
| ODS-A-I-9F | 9F/3.0 | 130 | 9F/3.0 | 800 | 45° | 920 | 1200 | 1.8 |
| ODS-A-I-10F | 10F/3.33 | 130 | 10F/3.33 | 800 | 45° | 920 | 1200 | 1.9 |
| ODS-A-I-12F | 12F/4.0 | 160 | 12F/4.0 | 800 | 45° | 920 | 1200 | 2.0 |
| ODS-A-I-14F | 14F/4.67 | 160 | 14F/4.67 | 800 | 45° | 920 | 1200 | 2.0 |
The Occluder Delivery System for Adult VSD, PDA Occluders and Plug
| Catalogue No | Loader | Long sheath | Dilator | Cable | ||||
| I.D. (mm) | Effective Length (mm) | I.D. (mm) | Effective Length (mm) | Angle | Effective Length (mm) | Effective Length (mm) | Diameter (mm) | |
| ODS-P/V-II-5F | 5F/1.85 | 130 | 5F/1.85 | 800 | 180° | 920 | 1200 | 1.4 |
| ODS-P/V-II-6F | 6F/2.0 | 130 | 6F/2.0 | 800 | 180° | 920 | 1200 | 1.6 |
| ODS-P/V-II-7F | 7F/2.33 | 130 | 7F/2.33 | 800 | 180° | 920 | 1200 | 1.8 |
| ODS-P/V-II-8F | 8F/2.67 | 130 | 8F/2.67 | 800 | 180° | 920 | 1200 | 1.8 |
| ODS-P/V-II-9F | 9F/3.0 | 130 | 9F/3.0 | 800 | 180° | 920 | 1200 | 1.8 |
| ODS-P/V-II-10F | 10F/3.33 | 130 | 10F/3.33 | 800 | 180° | 920 | 1200 | 1.9 |
| ODS-P/V-II-12F | 12F/4.0 | 160 | 12F/4.0 | 800 | 180° | 920 | 1200 | 2.0 |
| ODS-P/V-II-14F | 14F/4.67 | 160 | 14F/4.67 | 800 | 180° | 920 | 1200 | 2.0 |
The Occluder Delivery System for Children ASD and PFO Occluders
| Catalogue No | Loader | Long sheath | Dilator | Cable | ||||
| I.D. (mm) | Effective Length (mm) | I.D. (mm) | Effective Length (mm) | Angle | Effective Length (mm) | Effective Length (mm) | Diameter (mm) | |
| ODS-A-III-6F | 6F/2.0 | 130 | 6F/2.0 | 600 | 45° | 680 | 1200 | 1.6 |
| ODS-A-III-7F | 7F/2.33 | 130 | 7F/2.33 | 600 | 45° | 680 | 1200 | 1.8 |
| ODS-A-III-8F | 8F/2.67 | 130 | 8F/2.67 | 600 | 45° | 680 | 1200 | 1.8 |
| ODS-A-III-9F | 9F/3.0 | 130 | 9F/3.0 | 600 | 45° | 680 | 1200 | 1.8 |
| ODS-A-III-10F | 10F/3.33 | 130 | 10F/3.33 | 600 | 45° | 680 | 1200 | 1.9 |
| ODS-A-III-12F | 12F/4.0 | 160 | 12F/4.0 | 600 | 45° | 680 | 1200 | 2.0 |
| ODS-A-III-14F | 14F/4.67 | 160 | 14F/4.67 | 600 | 45° | 680 | 1200 | 2.0 |
The Occluder Delivery System for Children VSD, PDA Occluders and Plug
| Catalogue No | Loader | Long sheath | Dilator | Cable | ||||
| I.D. (mm) | Effective Length (mm) | I.D. (mm) | Effective Length (mm) | Angle | Effective Length (mm) | Effective Length (mm) | Diameter (mm) | |
| ODS-P/V-IV-6F | 6F/2.0 | 130 | 6F/2.0 | 600 | 180° | 680 | 1200 | 1.6 |
| ODS-P/V-IV-7F | 7F/2.33 | 130 | 7F/2.33 | 600 | 180° | 680 | 1200 | 1.8 |
| ODS-P/V-IV-8F | 8F/2.67 | 130 | 8F/2.67 | 600 | 180° | 680 | 1200 | 1.8 |
| ODS-P/V-IV-9F | 9F/3.0 | 130 | 9F/3.0 | 600 | 180° | 680 | 1200 | 1.8 |
| ODS-P/V-IV-10F | 10F/3.33 | 130 | 10F/3.33 | 600 | 180° | 680 | 1200 | 1.9 |
| ODS-P/V-IV-12F | 12F/4.0 | 160 | 12F/4.0 | 600 | 180° | 680 | 1200 | 2.0 |
| ODS-P/V-IV-14F | 14F/4.67 | 160 | 14F/4.67 | 600 | 180° | 680 | 1200 | 2.0 |
