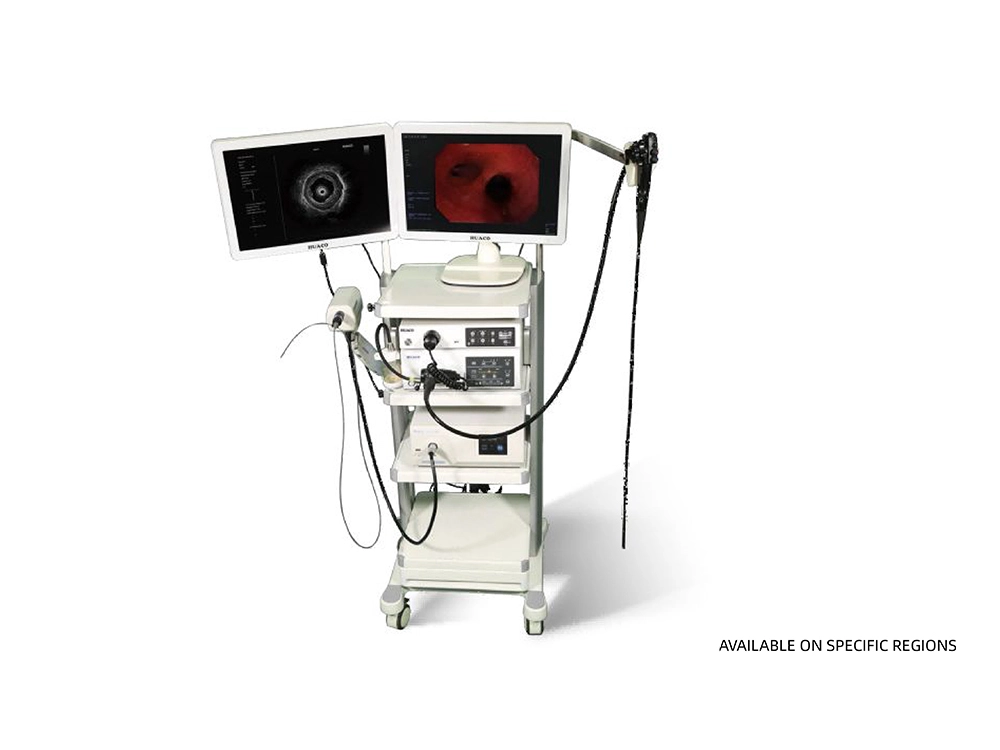

Video Endoscopes and Endoscopic Ultrasonic Probes VSONIC 600B
Video Endoscopes and Endoscopic Ultrasonic Probes VSONIC 600B

Video Endoscopes and Endoscopic Ultrasonic Probes VSONIC 600B

Panoramic 360° ultrasound view

High resolution ultrasound imaging

VsonicPro Mini Probes

Video Endoscopes and Endoscopic Ultrasonic Probes VSONIC 600B Details


Panoramic 360° ultrasound view

The mechanical radial scanning probes featured with 360˚

circumferential scanning direction, provide a panoramic ultrasonic view for precise examination of tissue layers.

High resolution ultrasound imaging

Wideband high-frequency ultrasound images and low-noise signal processing technologies make the better resolution and detecting depth possible.

VsonicPro Mini Probes

• Easy endoscopic ultrasonography during routine examinations.

• Multi-frequency probes provide different choices for ultrasound imaging.

• Compatible with any scopes with the ID of working channel from 1.7mm or more.


Specification



MODEL

2020B

2017C

Ultrasonic Frequency

20MHz

20MHz

Display Mode

B-mode

Scanning method

Mechanical radial scanning

Scanning direction

360° circumferential, in perpendicular direction withrespect to probe insertion direction

Working length

2,050 mm

2,150 mm

Total length

2,140 mm

2,240 mm

Insertion tube

1.7mm

1.4 mm

Maximum diameter

1.7mm

1.4 mm

Compatible scope

≥2.0 mm

≥1.7 mm



Light 680 Xenon Light Source, Smart View 680 VideoProcessor, powered with the high resolution 600G series gastroscopes with the OD from 5.6-9.9mm and 600I series colonoscopes with the OD from 9.0-13.2mm.

HD and HR images are achieved through the wide range of image latitude, spatial frequency response, low noise color reproduction by high-speed image signal transmission,image enhancement algorithms and uniform illumination with the brightness auto-adjustment etc.


Vsonic 600 B upgrades the system software from Version 1 (Vsonic 600) to Version 2.
